Sign Hole Specifications

Sign Hole Specifications

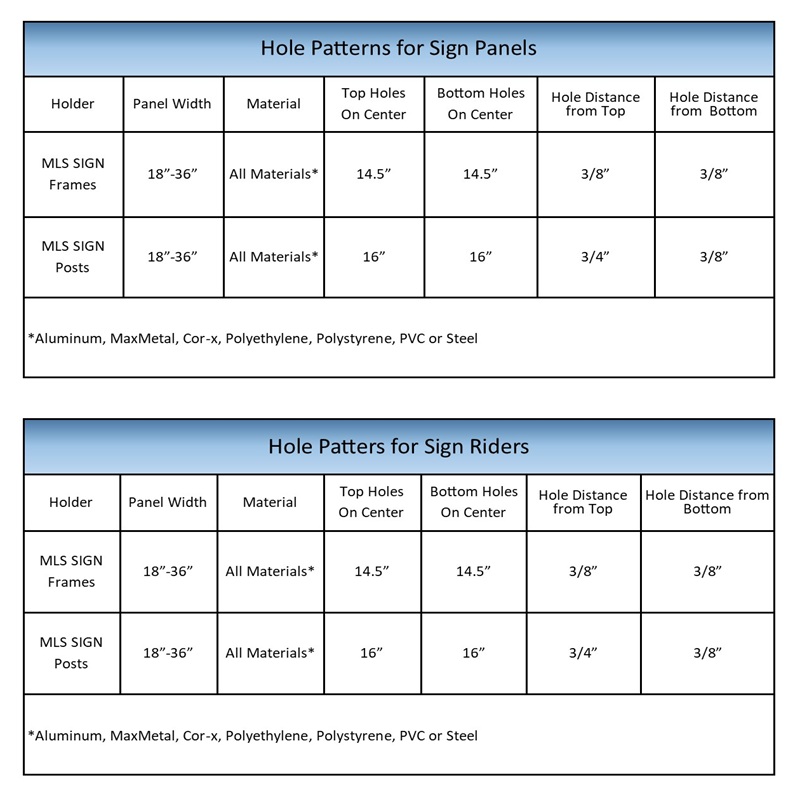

All Hole Patterns are designed to fit our frames, posts, and stakes. Please review the chart below to see which hole pattern will appear on your custom panels. All holes are 5/16" diameter round holes. Holes are measured from center of hole to edge of panel.  All of our frames with a bolt hole option have holes located 14.5” apart centered on the bar. In addition, our Combo frames that are 24” and wider have an additional set of holes spaced 17” apart centered on the bar. Oblong holes are ¼” X ½”

Grommet Hole Specifications

Grommet hole centers are 5/8" from the edge of the panel.  Due to the diameter of the grommet rim, a safe zone for critical art should be at least 1.25" from all edges.

*NOTE: Sign panels do not come with grommets unless requested.
